Belle Group 165.9.038 Mechanical Concrete Vibrator with Choice of Flexible Shaft Poker |  | Brand: Belle Group
Category: Health and Beauty
This item is no longer available
Shipping Weight (lbs): 0
Dimensions (in): 17.5 x 16.5 x 20
MPN: 165.9.038
ASIN: B0018RJ3EI
| | |
| Editorial Reviews:
Product Description

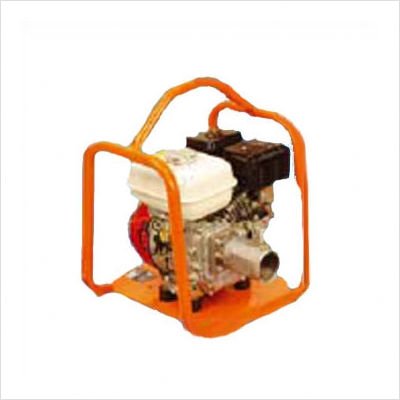

Belle Group 165.9.038 This Mechanical Concrete Vibrator consists of the core power unit, a HondaGX160 Gas Engine and Flexible Shaft Poker available with a wide range of diameters. Flexible shaft concrete vibrators are for high vibration power in concrete, and are designed to meet the toughest site conditions. Features: -Honda gas power unit with compact protective steel frame -Single-piece rotating pendulum vibrator, generating 12000 rpm -Designed to the highest quality standard for long and trouble free working life -16 ft of flexible shaft made of special spun steel and steel coil casing hose reinforcement -Easy to move on site -Delivered with a universal two-dog drive coupling (compatible with Dynapac and Wacker) -No special maintenance needed Specifications: -Engine: Honda GX160 gas -Horsepower: 5 hp -Engine Speed: 2800 RPM -Weight: 57 lbs -Overall Dimensions (just for engine): 20"H x 16.5" W x 17.5" D Flexible shaft concrete vibrators for high vibration power in concrete, designed to meet the toughest site conditions Flexible Shaft Specifications: -Poker Diameter: 1 inch -Frequency: 187 Hz -Amplitude: .03" -Weight: 21 lbs -Head Length: 11.5" -Shaft Length: 16 ft Flexible Shaft Specifications: -Poker Diameter: 1-3/8 inch -Frequency: 187 Hz -Amplitude: .04" -Weight: 26 lbs -Head Length: 13" -Shaft Length: 16 ft Flexible Shaft Specifications: -Poker Diameter: 1-3/4 inch -Frequency: 187 Hz -Amplitude: .04" -Weight: 35 lbs -Head Length: 14.75" -Shaft Length: 16 ft Flexible Shaft Specifications: -Poker Diameter: 2-3/16 inch -Frequency: 187 Hz -Amplitude: .04" -Weight: 37 lbs -Head Length: 15.25" -Shaft Length: 16 ft Flexible Shaft Specifications: -Poker Diameter: 2-11/16 inch -Frequency: 187 Hz -Amplitude: .039" -Weight: 46 lbs -Head Length: 16.25" -Shaft Length: 16 ft
|
|
|
